Drive in Pallet Racking for Local Market

2017 07/08

Drive in Pallet Racking for Local Market

Customer: A Electronic Products Manufacturing Factory in Local City

Warehoue Height: 5 meters.

Rach Height: 4.2 Meters.

Layers: 1 Ground Floor and 1 top layers, total 2 Layers

Rack Depth: 5 Pallets Position Each Lane

Pallet Size: L1200*W1200mm

Pallet Height with Cargo on: 1.7 Meter

Pallet Loading Weight: 1500kgs

Warehouse Area: 480 Square Meter

Project of Drive Through Pallet Racking with Battery Stacker

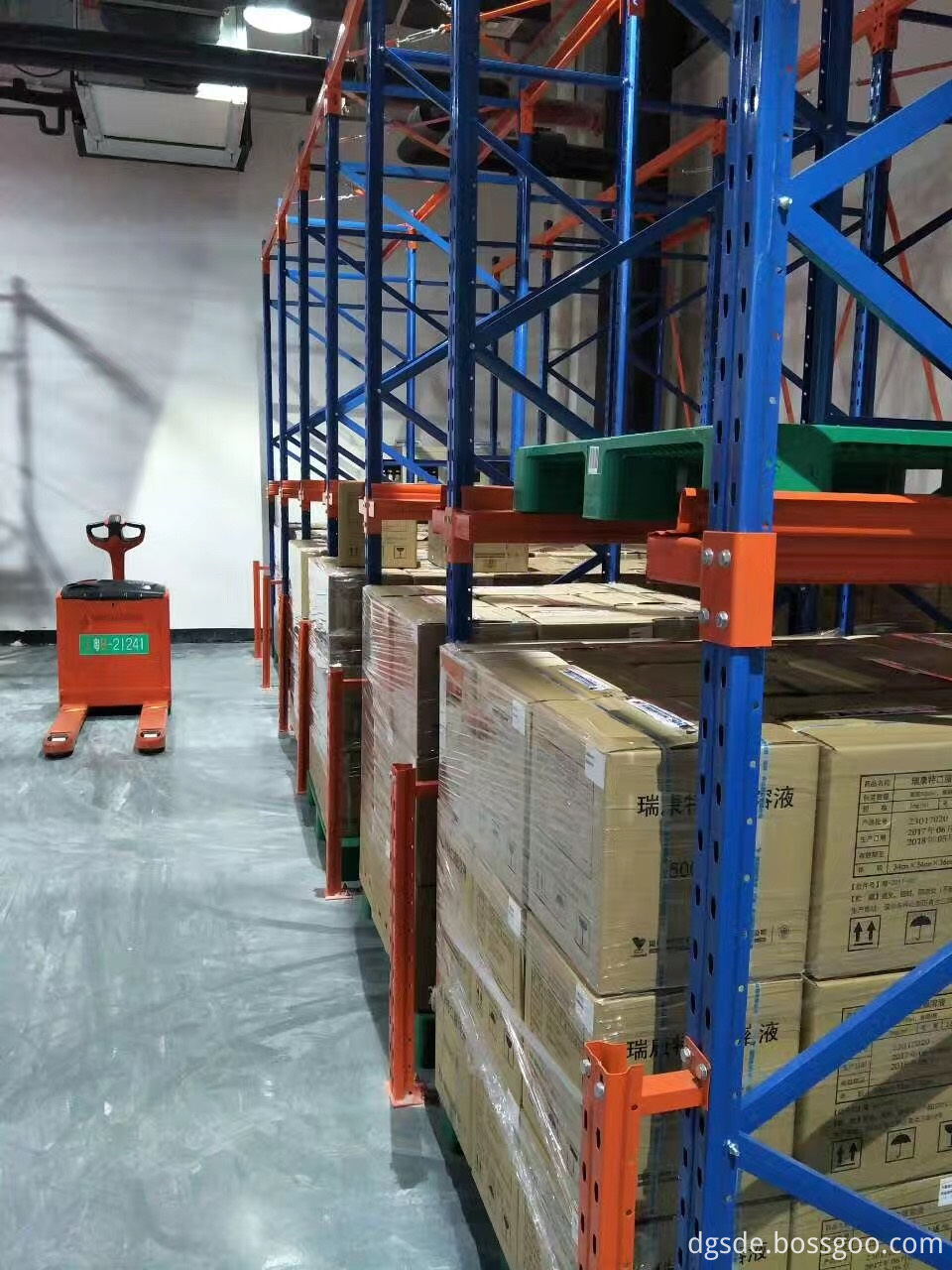

2 Layer Drive through Pallet Racking

Drive in Pallet Racking Front View

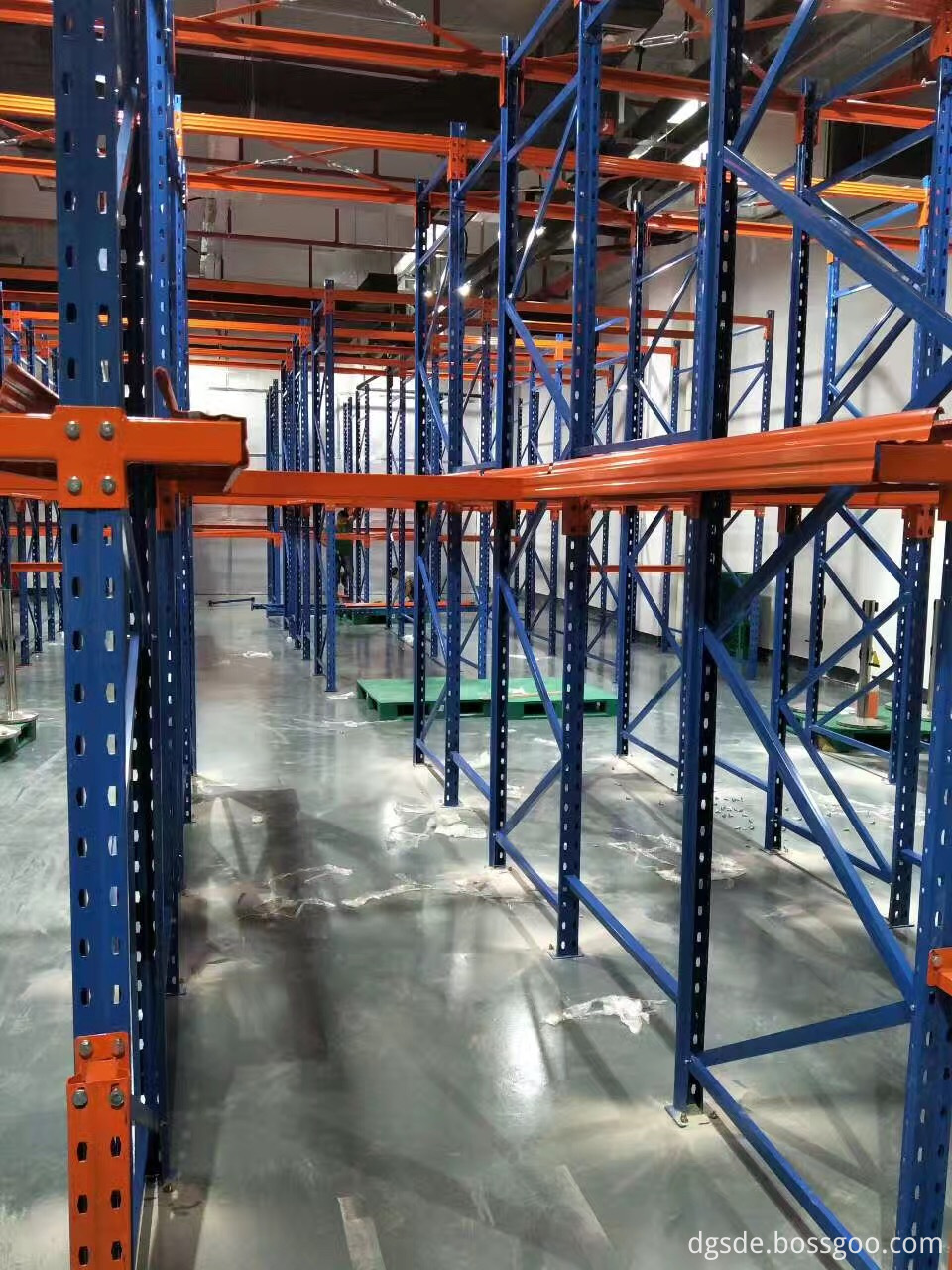

Drive Through Pallet Racking 2 Layers

Drive in Pallet Racking Upright Protector

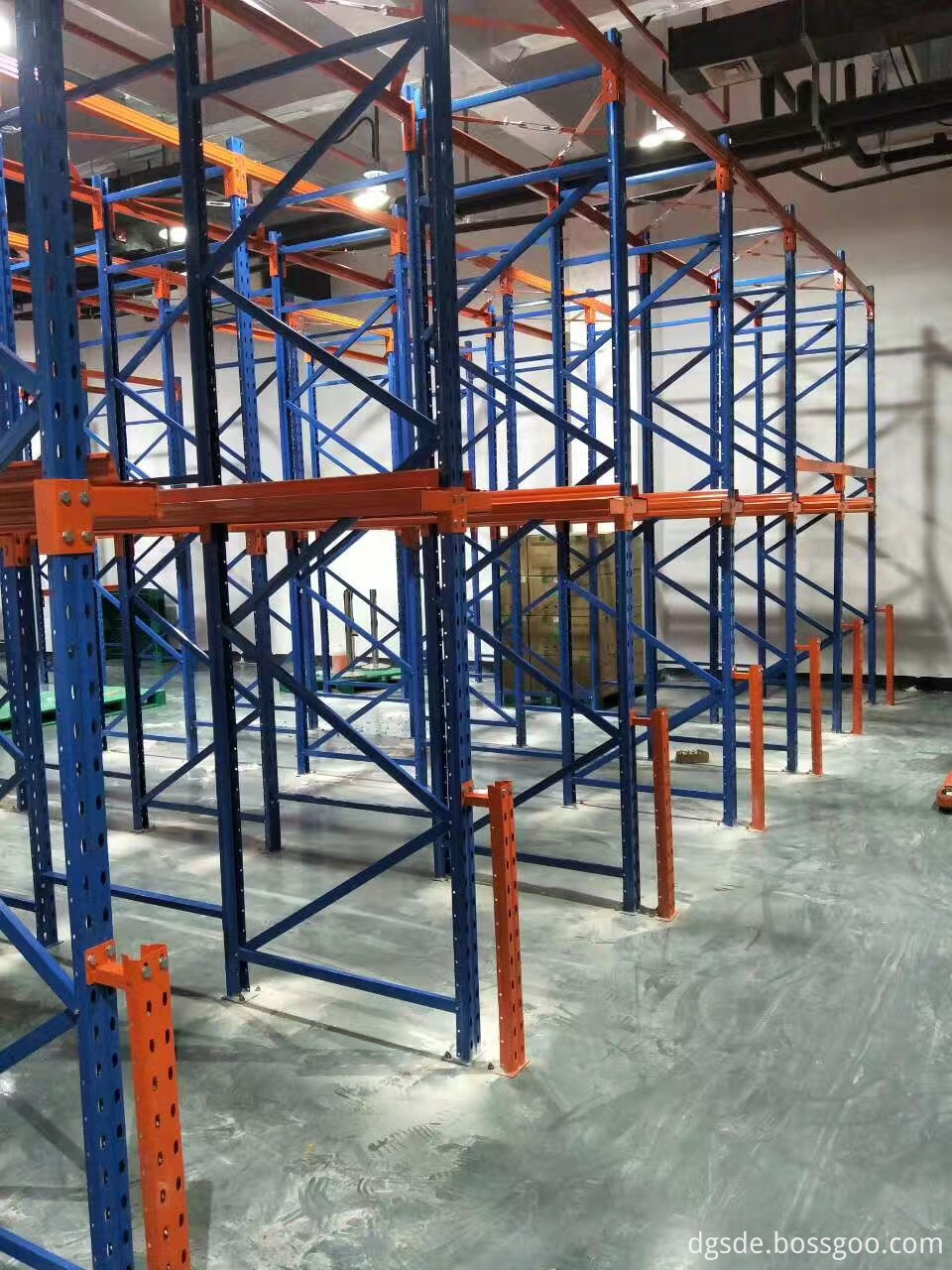

Drive Through Pallet Racking Protector

Drive in Pallet Racking Lane Detail

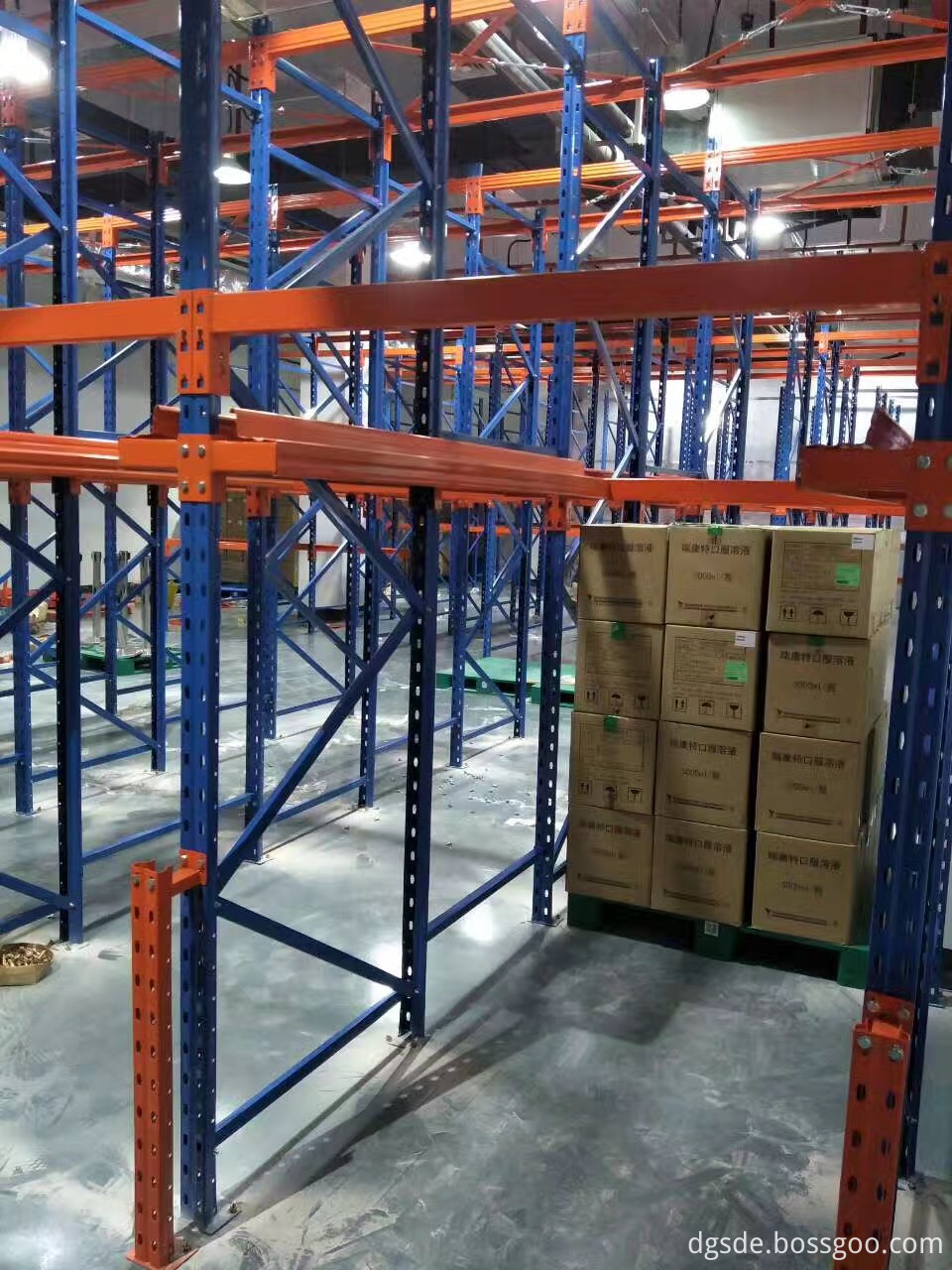

Drive Thru Pallet Racking Front View
